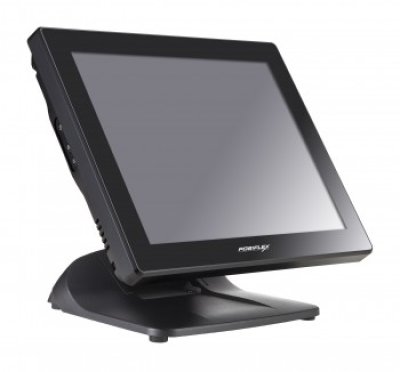

POSIFLEX PS-3615-G2 (พร้อม Windows)

Specification

• Processor  :  Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache

• System Memory  :  RAM 8GB DDR4 SO-DIMM x 1, max. 16GB

• Storage Device  : M.2 connector, (SATA Signal Only) x 1

• TPM Support  :  Yes, TPM 2.0

• Power Supply  :  12V/60W

• OS Support  :  Windows 10 IoT 64 Bit

Display & Touch

• LCD  :  15" TFT LCD

• Resolution  :  1024 x 768

• Touch  :  True-flat PCAP touch with multi-touch support (IP65 on front panel)

I/O Expansion

• Serial Port  :  4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

• Standard USB Port  :  5 , USB 3.0 x 2 + USB 2.0 x 2 (On I / O Plate) + USB 2.0 x 1 (On the top)

• Parallel Port  :  1, via optional conversion cable through service window

• PoweredUSB Port  :  Optional 24V x 1 + 1V x 3 via GEN8 base

• OTG USB : N/A

• LAN Port  :  10/100/1000 Mb x 1

• Display Port  :  VGA x 1, 12V support for Posiflex monitors

• CR Port  :  1, control 2 CR via optional Y-cable, Supporting 24V cash drawer

• PS/2 Port  :  1, via optional conversion cable through service window

• Audio  :  Buzzer x 1 ; Optional internal 2W speaker x 1

• Expansion Slot  :  M.2 Slot x 1

Physical Dimension

• Dimension (W x D x H in mm)  :  372 x 252.7 x 320

• Weight (N. W. in kg)  :  5.86
